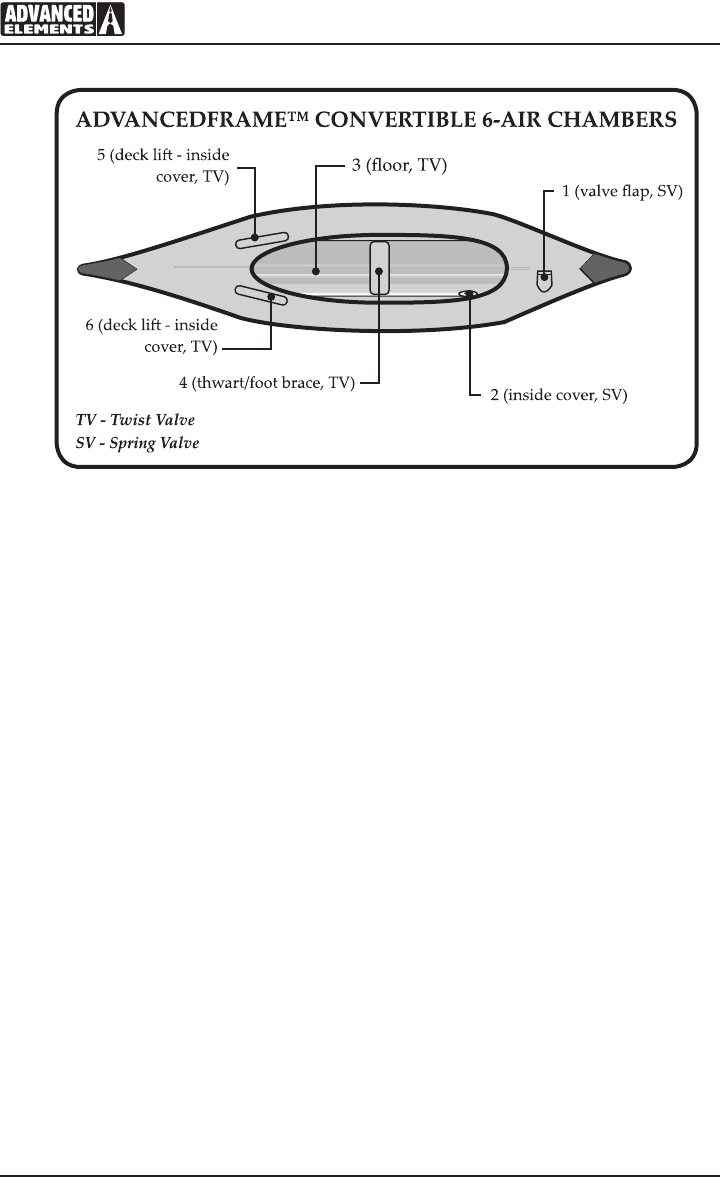

Diagram of Ination Chambers

3.3 Inating

IMPORTANT: Before inating, check to be sure that the kayak is completely assembled. Inate

your kayak in the following order. Failure to follow these instructions may cause damage to

your kayak. Do not over inate.

1. Partially inate chamber 1 until the kayak begins to ll out or appears to be half way inated

then close cap. Check to be sure the valve is in the inate position (See Figure 1).

2. Proceed to chamber 2. Inate chamber 2 until AdvancedFrame™ tube is rm to touch. Close

closed caps on chambers 1 and 2 tightly. Chamber 1 and 2 are separate chambers but

equalize in pressure because they are inside a fabric cover. Ideally you want to put half of the

air in chamber 1 and half in chamber 2. That way if you suddenly lose pressure in one

chamber you should have another chamber as a safety.

3. Inate chamber 3 “oor” (using proper hose ing). Twist valve open to inate and twist

closed when complete (Figure 2). Fill with air until rm (1 psi ONLY). CAUTION: Do not

over inate!

4. Inate thwart/foot brace (chamber 4) until rm (1 psi ONLY). Aach to Velcro on side tubes.

This chamber can be moved forward or backward when paddling solo.

5. Inate chambers 5 and 6 for desired deck li.

6. Make sure all valves are closed tightly and properly.

7. Finally, Insert Plastic Bow and Stern forms into pocket on bow and stern (Figure 3).
